Mill Crusher Single Cylinder Hydraulic Cone Stone Crushing Machine
Product Description:

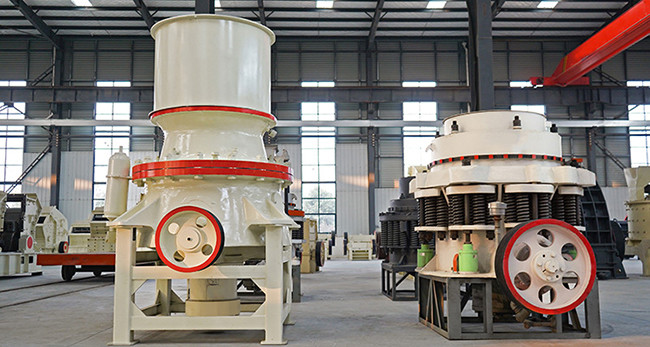

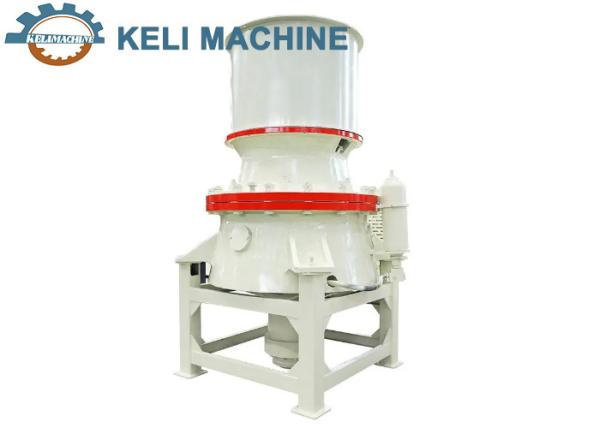

Single Cylinder Cone Crusher
Single Cylinder Cone Crusher is widely used in metallurgy, construction, hydropower, transportation, chemical industry, building materials industry.
SC(S) series single-cylinder hydraulic cone crusher is developed by adopting advanced crushing technology, integrating mechanical, hydraulic, electrical and intelligent control technologies. The new crusher structure, optimized laminar crushing cavity and fully intelligent automatic control system make SC(S) series single-cylinder hydraulic cone crusher have the performance characteristics that traditional cone crusher does not have. It can be widely used in medium crushing, fine crushing and ultra-fine crushing.
Widely used in metallurgy, construction, cement, water conservancy, highway, railroad, mineral processing and other fields, with the role of medium crushing, fine crushing, ultra-fine crushing.
Single-cylinder cone crusher generally has high crushing efficiency, simple operation, low operating costs, energy saving, green environmental protection, easy maintenance, etc., while the crushed material particle size is excellent, the quality is more excellent, so it is quite recognized and favored by the users in the industry, especially by the metal mines, construction of sand and gravel processing plant is highly sought after, becoming one of the sought-after equipment in the industry.
| Model | Cavities | Feeding Size(mm) | Adjusting Range of Discharge Opening (mm) | Capacity(t/h) | Power(kw) |
| KL-DG100 | Coarse | 200 | 20-50 | 80-190 | 75-90 |
| Medium | 150 | 16-40 | 60-125 |
| Fine | 50 | 10-30 | 40-100 |
| KL-DG200 | Coarse | 250 | 20-70 | 160-280 | 132-160 |
| Medium | 220 | 16-50 | 120-230 |
| Fine | 70 | 10-30 | 100-210 |
| KL-DG300 | Coarse | 300 | 30-80 | 260-650 | 220-250 |
| Medium | 240 | 20-60 | 200-400 |
| Fine | 100 | 16-30 | 150-300 |
| KL-DG400 | Coarse | 400 | 35-100 | 350-750 | 250-315 |
| Medium | 300 | 25-70 | 260-500 |
| Fine | 150 | 18-40 | 180-370 |
| KL-DG500 | Coarse | 500 | 40-120 | 480-1050 | 280-315 |
| Medium | 350 | 30-80 | 335-900 |
| Fine | 160 | 20-50 | 220-680 |
Outstanding Advantages
1. Simple structure, strong reliability, easy maintenance, less money spent on operation.
2. Large production capacity, high crushing efficiency and low energy consumption.
3. Combination of various cavities, adapting to the needs of a variety of particle size
4. Long life liner
5. Rolling mortar wall does not need packing, quick and easy to replace.
6.PLC+touch screen automatic control system ensures the safe operation of the equipment.
In terms of crushing performance, in general, the multi-cylinder hydraulic cone crusher is higher, its crushing force and crushing ratio are larger, the discharge adjusting range is wider, greater flexibility in adjusting the product grade.
It is superior to single-cylinder cone crusher in the performance and quality of crushed products.
However, whether single or multiple cylinders are used in the entire process depends on the entire process layout.
The multi-cylinder hydraulic cone crusher is used to reduce the number of crushing stages and reduce investment. The needle-like content is generally below 15%.
